Virtual Circuit Board

Virtual Circuit Board, or VCB, is a sandbox-only drawing-based logic simulator featuring an assembler and a powerful simulation engine. All of it designed to give you the freedom to build and experiment with logic circuits to your heart’s content.

Set your own goals

In VCB you will set your own goals of what and how you want to build, it does not come with tutorials, levels, or challenges, and it will not teach you digital logic or assembly. VCB's development philosophy is aimed toward delivering a fresh sandbox experience for players who already have some basic knowledge about logic gates and circuits.

Powerful Simulation

High-performance tick-based simulation, where signals propagate between components one tick at a time. Simulate with a frequency of up to millions of updates per second.

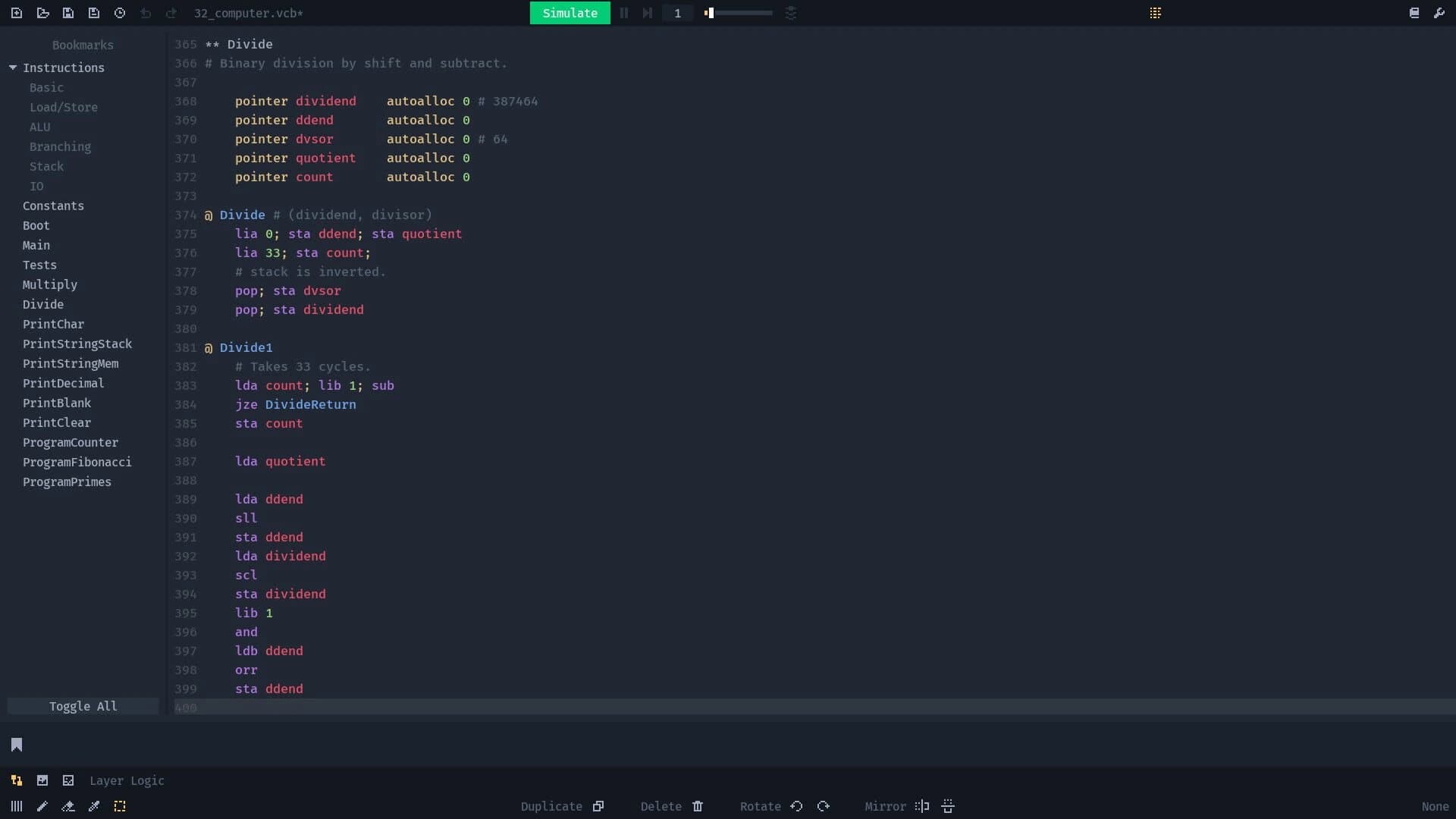

Assembly

Assembly editor in which you can define your own instructions, allowing you to create a program that will be assembled into a Virtual Memory accessible by your circuits.

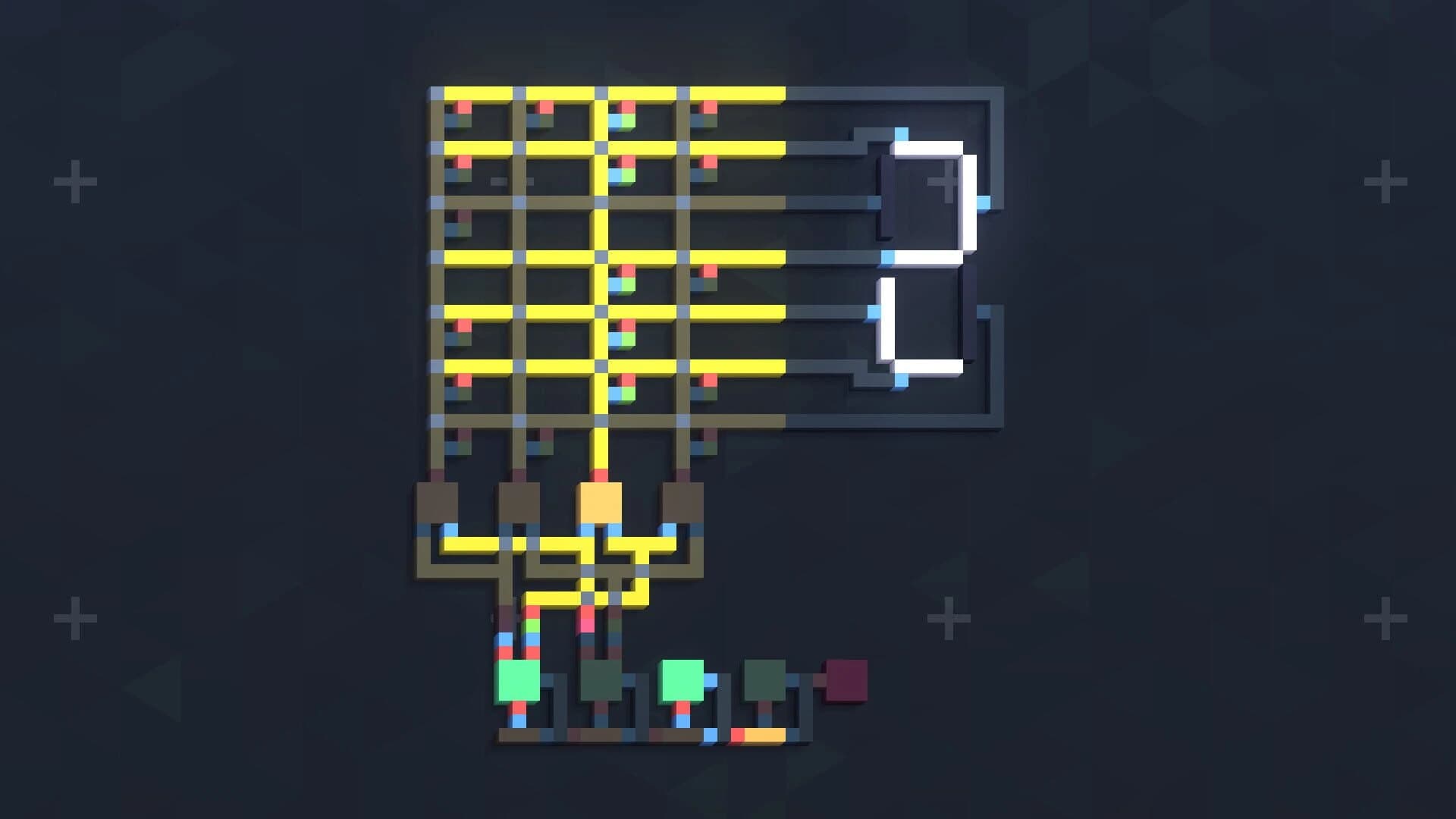

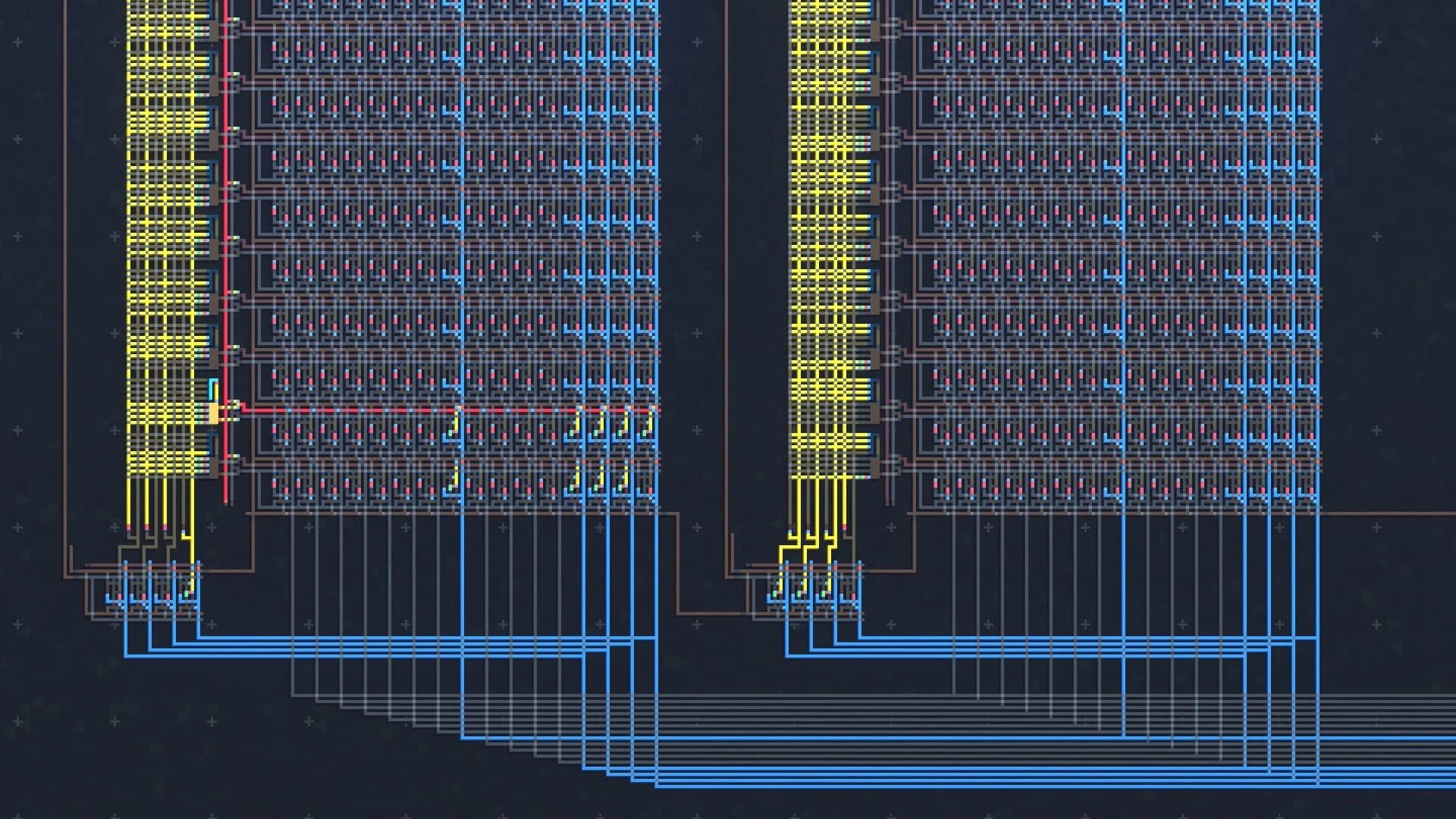

Editing and Simulating

Working in VCB is separated in two modes, while editing you can use the drawing tools to modify your circuit and the assembly editor to write programs, and during you can see your circuit running, interact with it, and watch the assembly instructions being executed.
